BCM50 startup parameters:
Region: Germany
Template: PBX
start DN: 5000
A B C D
dig telephone: 5001 5002 5003 5004
Alma Barack Citrom Dinnye
ana telephone: 5005 5006
ABarack ADinnye
Voip telephone: 5101 5102 5103 5104
VAlma VBarack VCitrom VDinnye
192.168. 1.252 1.251 1.100 1.253
Task navigaton (tasknav tasknav2)
Resources/Application Resources (applres.gif)
Similar list can be produced in Definity exchange using "list trunk" command (telres.gif).
..\Telephony Resources\IP Terminal Global Settings: (tripset1.gif)
..\Telephony Resources\IP Terminal Details: (tripset2.gif)
..\Telephony Resources\Set Port Details: (tripset3.gif)
..\Telephony Resources\IP Trunks\Routing Table: (tript1.gif)
..\Telephony Resources\IP Trunks\H.323 Settings:
..\Telephony Resources\IP Trunks\H.323 Media Parameters:
..\Telephony Resources\IP Trunks\SIP Settings:
..\Telephony Resources\IP Trunks\H.323 SIP Media Parameters:

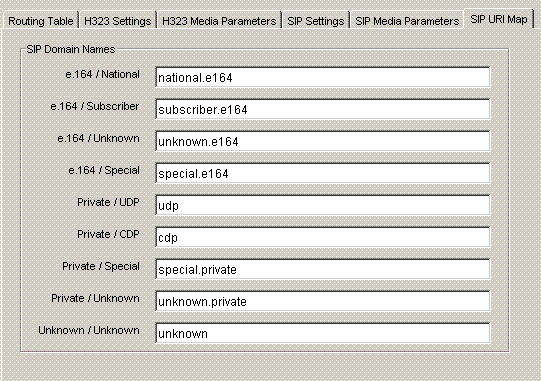

..\Telephony Resources\IP Trunks\H.323 SIP URI Map:
..\Telephony Resources\Analog Trunk Module:
..\Telephony Resources\Sets:
..\Telephony Resources\DTM-PRI Trunk Module:
Telephony/Global Settings/Features Settings: (gsfs.gif)
Telephony/Global Settings/Advanced Features Settings: (gsafs.gif)
System speed dial (gsssd.gif)
Line assignment tab: (dtell3.gif)
Line pool tab: (dtell1.gif)
Answer DNS tab: (dtell2.gif)
Telephony/Sets/Active Sets/Capabilities & Preferences List: (dtelc.gif)
Capabilites (dtelc1.gif)
Preferences (dtelc2.gif)
Button Programming table (DTEL, IP): (dtel0.gif)
Button Programming: (bptdtel.gif)
Standard prog table (caption, * actual):
1 contrast * 5 ------ 2 show time 6 ------ 3 ------- 7 send message 4 ------- 8 speed dial 9 call park 17 call timer 10 saved no 18 ring again * 11 call fwd * 19 dnd 12 pick up 20 conference * 13 page 21 last no * 14 transfer * 22 voice call 15 static time & date 23 intercom 16 reply message 24 intercom ----------------------------------------------------- new table: 1 contrast * 5 ------ 2 show time 6 ------ 3 last number redial 7 send message 4 ------- 8 speed dial 9 target line 17 call park 10 hunt line 18 ring again * 11 swca1 19 call forward 12 swca2 20 conference * 13 ----- 21 transfer 14 ----- 22 answer DN (IP tel) 15 static time & date 23 intercom 16 reply message 24 intercomIP set Capabilities and Preferences table panel: (ipteliptd.gif)
Preferences: (iptelpref.gif)
Capabilities: (iptelcap.gif)
Button Programming: (bptiptel.gif)
Standard prog table: (check: F *0)
1 target line 3 intercom 2 answer DN 4 intercom 6 call park 7 ring again 5 Call forward 8 conference 9 transfer
target lines (tl1, tl2)
MAC: 00 16 ca 3f 73 45
System ID: 00 16 ca 3f 73 44
IP address: 192.168.1.2
IP subnet mask: 255.255.255.0
Default gateway:192.168.1.1
DNS domain name: localdomain
MTU size: 1500
Internal subnets:
mask MTU
Internal LAN: 10.10.99.1 255.255.255.252 1500
OAM : 10.10.11.1 -"-
OAM lan subnet details:
Client name
10.10.11.1 00 16 ca 3f 73 46 Microprocessor NIC
10.10.11.2 00 1A 92 16 48 F4 dtmit-2fcofba51
Dial out static router:
10.10.14.0 255.255.255.0 ModemDialOut
PRI trunk programming:
1. Resources/Telephone resources/DTM-PRI/Trunk module parameters
2. Resources/Telephone resources/DTM-PRI/Provision lines (65-94)
3. Telephony/Lines/Active Physical lines -> Pool:BlocB
4. Dialing Plan/Routing/Routes -> Route 001: BlocB
5. Dialing Plan/Routing/Destination codes -> 2,3,4 to Route 001
6. Dialing Plan/Routing/Line pools/BlocB ->5001,5002,.... Those dialing numbers which can access the trunk.
General (dpgen)
DNs (dpdns)
Public network (dppub)
Private network (dnpriv)
Line pools (dnloop)
Route programming (dnroutr)
Route destination code programming (dnroutrdc)
